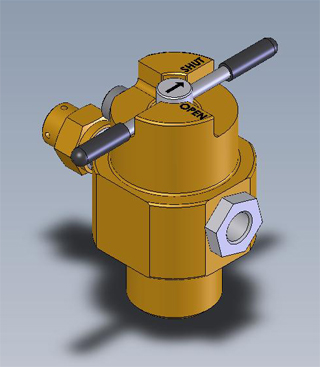

MBV 2-WAY Cylinder Shut-off (3500 psi)

MBV 2-WAY Cylinder Shut-off (3500 psi)
MBV-CYL-XYZ

X where S = 304 stainless body (standard)
B = brass body (optional)
Y where 4 = -4 outlet port (standard)
6 = -6 outlet port (optional)
Z where L = Locking 2-hand spring plunger
D = Ball detent (optional)
  • TWO-way valve with latching or locking (shown) detents
  • Handle readily shows state of valve (open/shut)
  • Fully open at 1/4 turn
  • Low operating torque: under 5 INCH-lbs at 3500 psi
  • Small plan view of 4 x 4 inches
  • Internal bore of 0.090 inches
  • Actuator: Any MBV valve can be actuated by air, electric or hydraulic sources.

Contact SBVE for details.

Applications: Shut-off for high pressure cylinders, Pressure relief (burst disc) included

LINK to technical drawing
