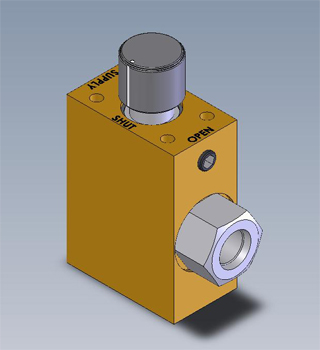

MBV 2-WAY (3500 psi)
MBV-2XYZ
| X where |
S = 304 stainless body (standard)
B = brass body (optional) |
| Y where |
4 = -4 outlet port (standard)
6 = -6 outlet port (optional) |
| Z where |
D = Ball detent (standard)
L = Locking 2-hand spring plunger (optional) |
- TWO-way valve with latching or locking detents
- Low operating torque: under 5 INCH-lbs at 3500 psi
- Small plan view of 1 x 2.2 inches
- Bottom or top (panel) mount
- Internal bore of 0.090 inches
- Actuator:Any MBV valve can be actuated by air, electric or hydraulic sources.
Contact SBVE for details.
Applications: Shut-off, gage protection, sampling, etc.
