MS PORT CONNECTIONS

VT-3642-BB-XXX
2 Hand Handle Lock & Bleed Port in Ball
MS33649 Connections

Note: This valve can be supplied without 2 hand
handle lock part no. VT-3642-BB-XXX

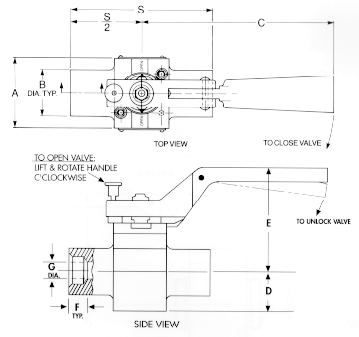

Dimensions - MS33649 Boss Fluid Connection, Internal Straight Thread
BASIC VALVE
PART NO.
VALVE
SIZE
BORE
A
B
C
D
E
F
G
S

DIA.
DIA.
DIM.
DIA.
DIM.
DIM.
DIM.
DIM.
DIA.
DIM.
VT-3642-32BB - XXX
2
1.781
4-1/2
4-1/2
8-1/2
2-3/4
5-11/16
1.368
1.781
8-1/2
VT-3642-24BB - XXX
1-1/2
1.312
4-1/2
4-1/2
8-1/2
2-3/4
5-11/16
1.127
1.312
8-1/2
VT-3642-20BB - XXX
1-1/4
1.708
4-1/2
4-1/2
8-1/2
2-3/4
5-11/16
1.116
1.078
8-1/2
VT-3642-16BB - XXX
1
.844
2-5/8
1-3/4
7
1-7/16
4
1.064
.844
5-1/4
VT-3642-12BB - XXX
3/4
.609
2-5/8
1-3/4
7
1-7/16
4
1.064
3844
5-1/4
VT-3642-08BB - XXX
1/2
.391
2-5/8
1-1/8
7
1-7/16
4
.831
.391
5-1/4
VT-3642-06BB - XXX
3/8
.297
2-5/8
1-1/8
7
1-7/16
4
.709
.297
5-1/4
VT-3642-04BB - XXX
1/4
.172
2-5/8
1-1/8
7
1-7/16
4
.656
.172
5-1/4
