Socket Weld Connections

VT-3642- S6-XXX
2 Hand Handle Lock & Bleed Port in Ball
Socket Weld Connections

Note: This valve can be supplied without 2 hand
handle lock part no. VT-3612- S6-XXX with bleed port.

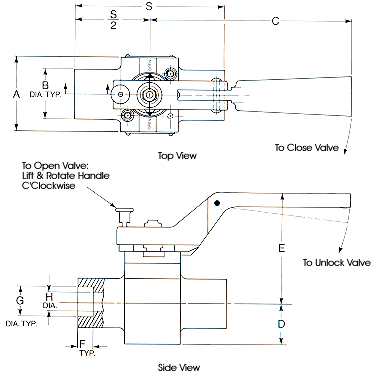

Dimensions - Socket Weld Connections
BASIC VALVE PART NO.
VALVE
SIZE
BORE
DIA.
A
B
C
D
E
F
G
H
S
DIM.
DIA.
DIM.
DIM.
DIM.
DIM.
DIA.
DIA.
DIM.
VT-3642-40 SS-25
2-1/2
1-1/8
-
-
8-1/2
-
5-5/16
-
-
-
-
VT-3642-32 SS-XXX
2
1-1/8
3-11/32
3-11/32
8-1/2
2-7/16
5-5/16
3/4
2.411
1-3/4
8-3/8
VT-3642-24 SS-XXX
1-1/2
7/8
2-11/16
2-11/16
8-1/2
1-13/16
4-11/16
5/8
1.920
1-3/8
7-1/8
VT-3642-20 SS-XXX
1-1/4
7/8
2-11/16
2-7/16
8-1/2
1-13/16
4-11/16
5/8
1.680
1-1/4
6-1/8
VT-3642-16 SS-XXX
1
1/2
2-5/8
2
7
1-7/16
4
5/8
1.335
13/16
5
VT-3642-12 SS-XXX
3/4
1/2
2-5/8
1-3/4
7
1-7/16
4
9/16
1.070
5/8
5-1/4
VT-3642-08 SS-XXX
1/2
1/2
2-5/8
1-3/8
7
1-7/16
4
1/2
.860
1/2
5-1/4
VT-3642-06 SS-XXX
3/8
1/2
2-5/8
1
7
1-7/16
4
7/16
.695
1/2
5-1/4
VT-3642-04 SS-XXX
1/4
1/2
2-5/8
7/8
7
1-7/16
4
3/8
.560
1/2
5-1/4
