Union Connections

VT-3612- UU-XXX
Threaded Union Connections

Note: This valve can be supplied with 2 hand
handle lock part no. VT-3642-UU-XXX with bleed port.

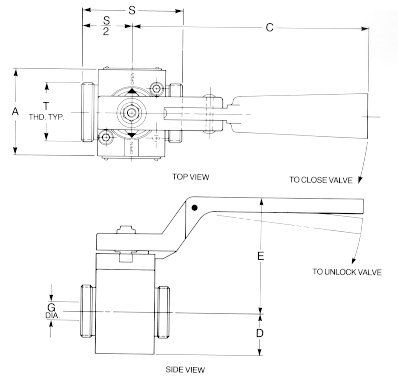

Dimensions - Threaded Union Connections
BASIC VALVE PART NO.
VALVE
SIZE
BORE
DIA.
A
C
D
E
G
T
S

DIM.
DIA.
DIM.
DIM.
DIA.
THD.
DIM.
VT-3612-40 UU-XXX
2-1/2
1-1/8
4-3/4
8-1/2
2-5/8
5-5/16
2-1/8
4-1/2-12
4-13/16
VT-3612-32 UU-XXX
2
1-1/8
4-1/2
8-1/2
2-3/8
5-5/16
1-3/4
3-3/4-12
4-5/16
VT-3612-24 UU-XXX
1-1/2
7/8
3-1/2
8-1/2
1-15/16
4-11/16
1-3/8
3-1/16-12
3-7/8
VT-3612-20 UU-XXX
1-1/4
7/8
3-1/2
8-1/2
1-13/16
4-11/16
1-3/16
2-3/4-12
3-5/8
VT-3612-16 UU-XXX
1
1/2
2-5/8
7
1-7/16
4
13/16
2-5/16-12
3-1/4
VT-3612-12 UU-XXX
3/4
1/2
2-5/8
7
1-7/16
4
5/8
2-12
3
VT-3612-08 UU-XXX
1/2
1/2
2-5/8
7
1-7/16
4
5/8
1-3/4-12
3
VT-3612-06 UU-XXX
3/8
1/2
2-5/8
7
1-7/16
4
1/2
1-3/8-12
3
VT-3612-04 UU-XXX
1/4
1/2
2-5/8
7
1-7/16
4
1/2
1-13/16-12
3
